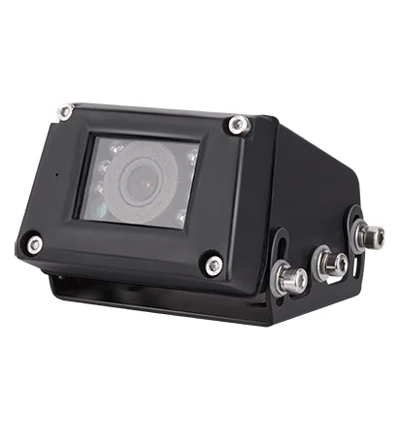

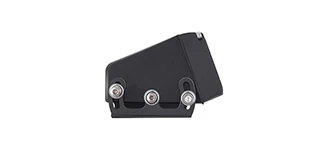

With Glass Two Way For Mirrors Cameras Four Dvr Digital 1080p View Mirror Side Fender Car Camera

Product Description

Specification

With Glass Two Way For Mirrors Cameras Four DVR Digital 1080P View Mirror Side Fender Car Camera

Image Device
1/3 CMOS
TV System
NTSC / PAL
Effective Pixels
968(H) * 488(V)
Sensing Area
4.880mm * 3.670mm
Sync. System
Internal
Resolution
Minimum Illumination
0.1 Lux (day), 0 Lux (with IR)
Microphone
Optional
IR LED Qty
8 PCS
Video Output
1.0 Vp-p/75 Ohm
AGC
AUTO
Signal to noise ratio
Better than 48dB
White balance
AUTO
Gamma Consumption
0.45
Electronic Shutter
AUTO
Backlight Compensation
AUTO
Power Supply
DC12V
Current Drain
65±5mA
Lens
2.8mm
Night vision
Support
Lens Angle
60° / 90° / 120° / 150° / 170°  Customized
Operating Temperature
 -20℃-70℃,RH 95% MAX
Storage Temperature
 -30℃-80℃,RH 95% MAX
Customized Service
Connector Type Customized
Camera chip solutions and product connectors can provide customized services accordingto customer requirements.

Monitor Optional

Optional customization 4-6 inches, 7 inches, 9-12 inches monitor, touch function, multi-split screen, ruler function, remote control, wifi wireless and Other functions customization.

Sample service

All products support sample service, you can send an inquiry or contact online customer service for specific details.
Application

Solution

The luview factory provides the best blind spot monitoring solutions for different vehicle machinery.
Package
About Us
FAQ
Q: What are your warranty terms?
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.

Q: Are you a real factory?
A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view
products.

Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.

Q: what are the payment terms?
A: Wiretransfer, FOB, CIF or EXW payment is also acceptable.

Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.

Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.

Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
